10.1" cheap price smart design zero bezel industrial PC with pcap touchscreen

Name: 101quot cheap price smart design zero bezel industrial PC with pcap touchscreen
Brand: ITD/OEM
Price: 1 USD

Buy cheap 10.1" cheap price smart design zero bezel industrial PC with pcap touchscreen product

Brand Name : ITD/OEM

Model Number : ITD10PPCT5KJ

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, PayPal(173515844@qq.com)

Supply Ability : 10000 units per month

Packaging Details : Foam,gift box,master carton,pallet

Screen Diagonal : 10.1"

Display active screen size : 216.96(H)×135.6(V) mm

Physical Resolution : 1280×800

Brightness : 350 nits

View Angels : 85/85/85/85

Touch Technology : Projected Capacitive Touch

Touch Drivers : Windows, Linux, Android, Mac, Raspberry Pi

Operating Temperature Range : -10~60°C (-20~70°C Optional)

Price : TBA

Contact Now

10.1" cheap price smart design zero bezel industrial PC with pcap touchscreen

TD PCAP Multi-touch Panel HMIs offer users a high degree of flexibility for interfaces and expansions, high-speed USB 3.0, high data transfer rate, redundancy and teaming capable Gigabit Ethernet, highly reliable and flexible RS232/485 serial communication interfaces; highly flexible graphics and video interfaces with HDMI and audio ports.

FEATURES

- Cost-effective control and monitoring for simple HMI apps
- HMIs offer machine-oriented operation and monitoring
- Rugged, compact, fanless, and multiple interface options
- High performance processor, graphics, memory and power
- IP65 degree of protection, resistance against corrosion
- High availability communication and storage
- Highly reliable touchscreens and long lasting displays
- High temperature, vibration, shock, and EMC resistance
- CE, FCC, RoHS Compliance

Spefifications

Flat Bezel Industrial Panel PC
Model Name		ITD101PPCG1X**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		10.1”
Display Active Screen Size (cm)		216.96(H)×135.6(V)
Aspect Ratio		16:10
Physical Resolution		1280×800
Maximum Resolution Supported		1920×1200
Colors		262K
Brightness (cd/m²)		350
Contrast Ratio		800:1
View Angels		85/85/85/85
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		20.25W
Order Information
10.1”Panel Mount Panel PC with Resistive Touch, J1900		ITD101PPCT1XJ1
10.1”Panel Mount Panel PC with PCAP Touch, J1900		ITD101PPCT5XJ1
10.1”Panel Mount Panel PC with Tempered Glass, J1900		ITD101PPCG1XJ1
10.1”Panel Mount Panel PC with Resistive Touch, i5		ITD101PPCT1XI5
10.1”Panel Mount Panel PC with PCAP Touch, i5		ITD101PPCT5XI5
10.1”Panel Mount Panel PC with Tempered Glass, i5		ITD101PPCG1XI5

Product Display:

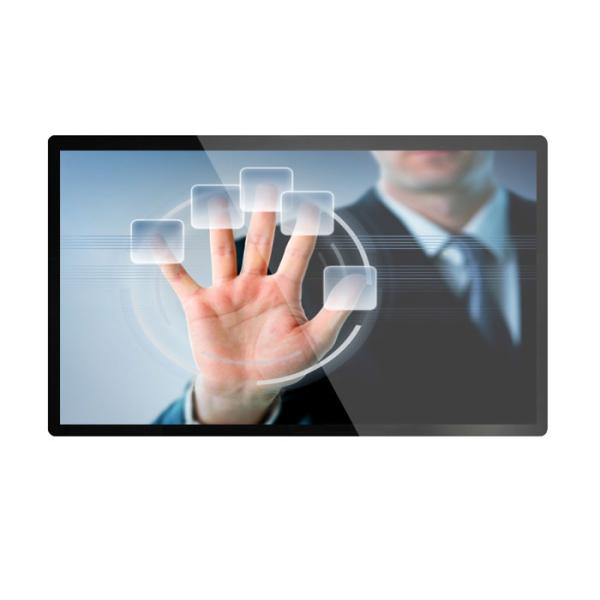

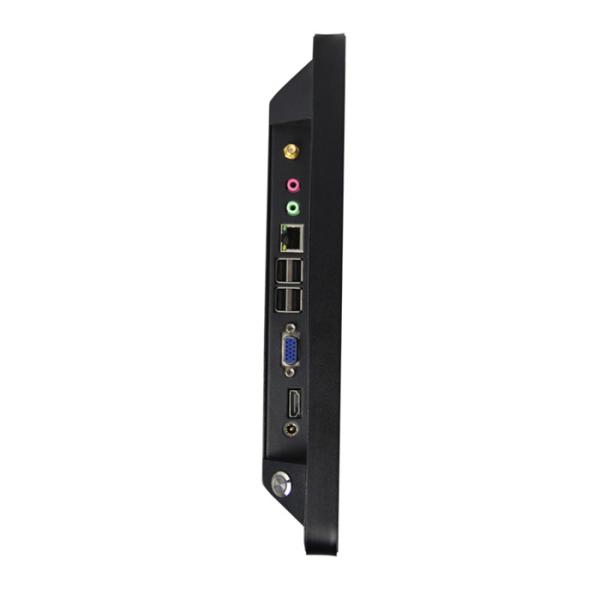

10.1" cheap price smart design zero bezel industrial PC with pcap touchscreen

Factory:
